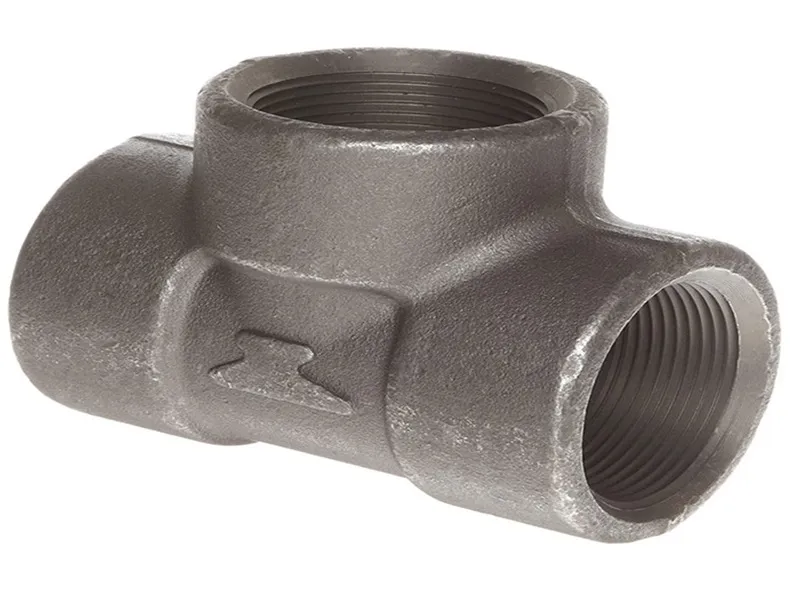

Carbon Steel Tee Pipe Fitting
A carbon steel tee pipe fitting is a crucial component used in piping systems to create a branching point where three pipes intersect. Crafted from carbon steel, these fittings offer excellent strength and resilience, making them ideal for high-pressure and high-temperature applications. The carbon steel tee pipe fitting comes in various configurations, such as equal tees and reducing tees, allowing for versatile piping solutions. Equal tees provide a symmetrical branch, while reducing tees accommodate pipes of different sizes. Carbon steel tees are commonly used in industries like oil and gas, chemical processing, and construction, where reliable and robust connections are essential for efficient fluid distribution and system integrity.
REFINE BY
- Flange Manufacturer
- Flange standard
- Welding Neck Flange
- Stainless steel Flange
- Carbon & Alloy steel Flange
- Blind Flange
- Lap Joint Flange
- Orifice Flange
- Threaded Flange
- Swivel Ring Flange
- Reducing Flange
- Slip-On Flange
- Spectacle Blind Flange
- Compact Flange
- 1/2" (24)
- 3/4" (24)
- 1" (24)
- 1-1/4" (24)
- 1-1/2" (24)
- 2" (25)
- 2-1/2" (24)
- 3" (24)
- 4" (20)
- 4" (20)
- 304L (179)
- 316L (179)
Carbon Steel Tee Pipe Fitting Models
Types Of Carbon Steel Tee Pipe Fittings
Type | Description | Applications |
Equal Tee | Has three outlets of the same diameter, forming a T-shape. Used for splitting or combining flow. | Water supply systems, oil and gas pipelines. |
Reducing Tee | Features one outlet of a different diameter compared to the other two. Used for transitioning between different pipe sizes. | Chemical processing, HVAC systems. |
Cross Tee | Similar to a tee but with four outlets, allowing for more complex connections. | Industrial piping systems, large-scale fluid distribution networks. |
Segmented Tee | Consists of multiple segments bolted together, allowing for custom angles and configurations. | Custom installations, temporary setups. |
Fabricated Tee | Custom-built tee fitting made from welding or machining various components. | Special projects, custom applications. |
Specifications Of Carbon Steel Tee Pipe Fittings
Specification | Details | Notes |
Material | Carbon Steel (typically ASTM A234 WPB, ASTM A105) | Offers strength and durability. |
Dimensions | Varies from 1/2″ to 48″ in diameter, with custom sizes available. | Standard sizes fit most applications. |
Pressure Ratings | From 150 to 2500 PSI depending on the pipe size and material grade. | High pressure tolerance available. |
Temperature Ratings | Generally suitable for temperatures up to 400°F (204°C), with specific grades supporting higher temperatures. | Select based on application needs. |
End Connections | Can be threaded, welded, or flanged. | Choice depends on installation method. |
Standards | Complies with ASME, ANSI, and API standards. | Ensures compatibility and safety. |
Applications Of Carbon Steel Tee Pipe Fittings
Application | Description | Benefits |
Oil and Gas | Used for transporting oil, gas, and other hydrocarbons across pipelines. | Reliable under high pressure and temperature. |
Water Supply Systems | Facilitate the distribution of water in municipal and industrial systems. | Efficient flow distribution and branching. |
Chemical Processing | Used in systems handling corrosive chemicals and high-pressure fluids. | Resilient to chemical exposure and pressure. |
HVAC Systems | Connect various components in heating, ventilation, and air conditioning systems. | Ensures effective fluid and air distribution. |
Construction | Integral in large-scale construction projects for managing and directing water, gas, and other utilities. | Versatile and customizable for specific needs. |
Advantages Of Carbon Steel Tee Pipe Fittings
Advantage | Description | Impact |
Strength and Durability | Carbon steel provides high tensile strength and durability, making it suitable for heavy-duty applications. | Longer service life and reliability. |
Cost-Effective | Generally less expensive compared to stainless steel and other alloys. | Economical choice for many projects. |
Versatility | Available in various sizes, types, and configurations to meet diverse piping needs. | Adaptable to different applications. |
High Pressure and Temperature Tolerance | Can handle high pressures and temperatures, suitable for demanding industrial environments. | Reliable performance in harsh conditions. |
Ease of Fabrication | Can be easily fabricated or machined to specific requirements. | Customization for unique applications. |
Maintenance And Inspection
Aspect | Description | Best Practices |
Inspection Frequency | Regular inspections to check for corrosion, leaks, and structural integrity. | Monthly or as per industry standards. |
Cleaning | Removal of debris and contaminants to prevent blockages and corrosion. | Use appropriate cleaning agents. |
Repair | Replace damaged or worn-out fittings promptly to maintain system integrity. | Follow manufacturer guidelines. |
Documentation | Maintain records of inspections, repairs, and replacements for compliance and tracking. | Ensure thorough and up-to-date records. |
Elite Piping Manufacture Co., Ltd. is a leading producer of high-quality carbon steel flanges and pipe fittings, including carbon steel tee pipe fittings. With a commitment to excellence and innovation, the company has established ourselves as a trusted name in the piping industry. Founded with a vision to provide robust and reliable piping solutions, Elite Piping Manufacture Co., Ltd. leverages advanced manufacturing technologies and stringent quality assurance measures to ensure products adhere to top industry standards.
The company’s carbon steel tee pipe fittings are designed to provide efficient flow distribution and branching across a range of uses, from oil and gas pipelines to water supply systems and chemical processing plants. These carbon steel tee pipe fittings are made from premium-grade carbon steel, such as ASTM A234 WPB and ASTM A105, which guarantees exceptional strength, durability, and resistance to high pressure and temperature conditions. Elite Piping’s carbon steel tee pipe fittings come in various sizes and configurations, including equal tees, reducing tees, and cross tees, to meet the diverse needs of our clients.
Elite Piping Manufacture Co., Ltd. distinguishes ourselves through our adherence to international standards and its focus on custom solutions. The company’s cutting-edge production facilities feature advanced machinery that allows for precise fabrication and quality assurance. Each fitting is subjected to thorough testing to verify it meets specifications for pressure, temperature, and material integrity, providing customers with dependable and long-lasting products.
In addition to our exceptional product quality, Elite Piping offers comprehensive support services, including technical consultation, project management, and after-sales support. Our team of experienced professionals works closely with clients to understand their specific requirements and provide tailored solutions that enhance system performance and reliability.
Overall, Elite Piping Manufacture Co., Ltd. is dedicated to advancing the field of piping technology through innovation, quality, and customer-focused service. Our carbon steel tee pipe fittings are a testament to our commitment to delivering products that support the efficient and safe operation of critical infrastructure across various industries.
